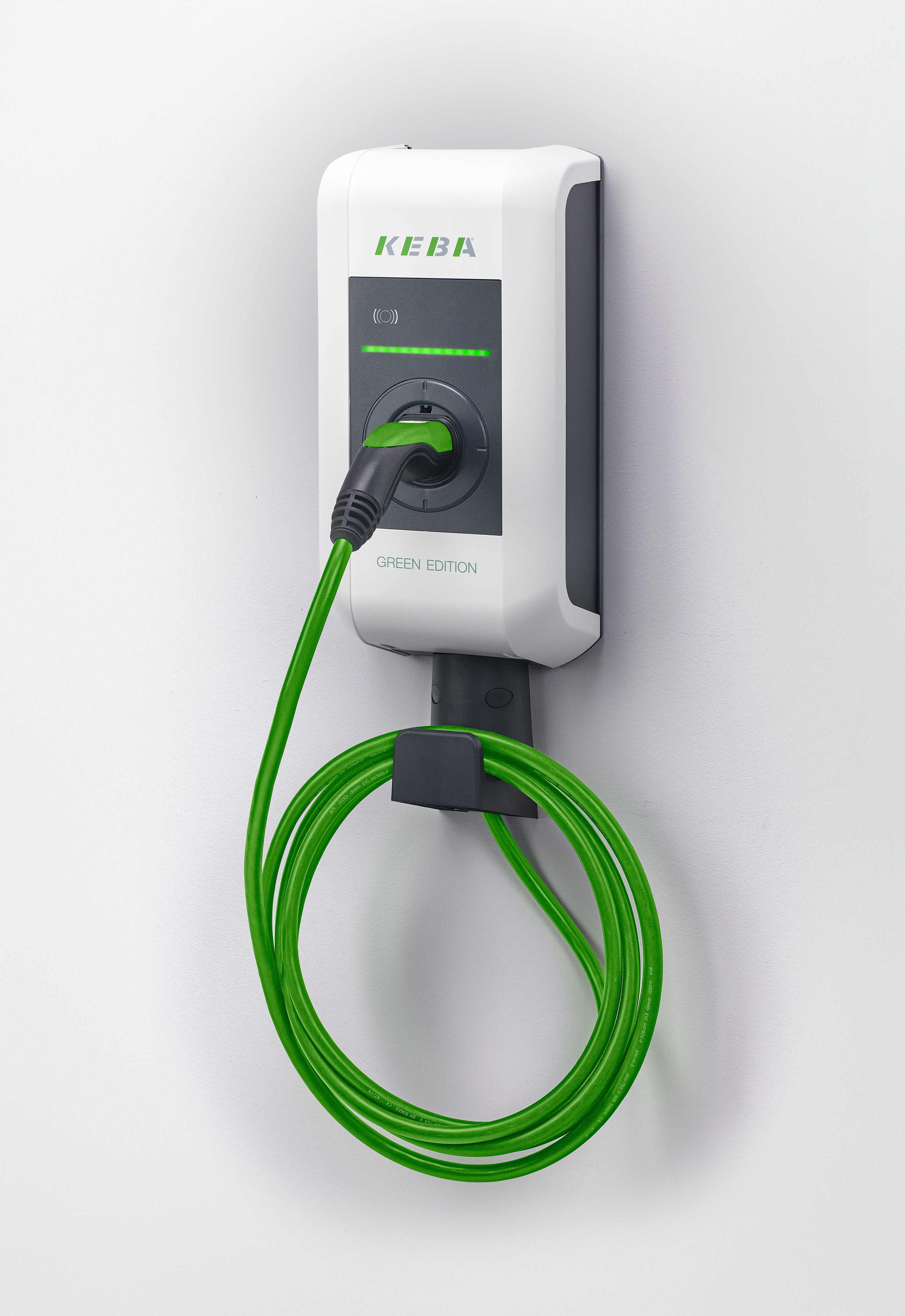

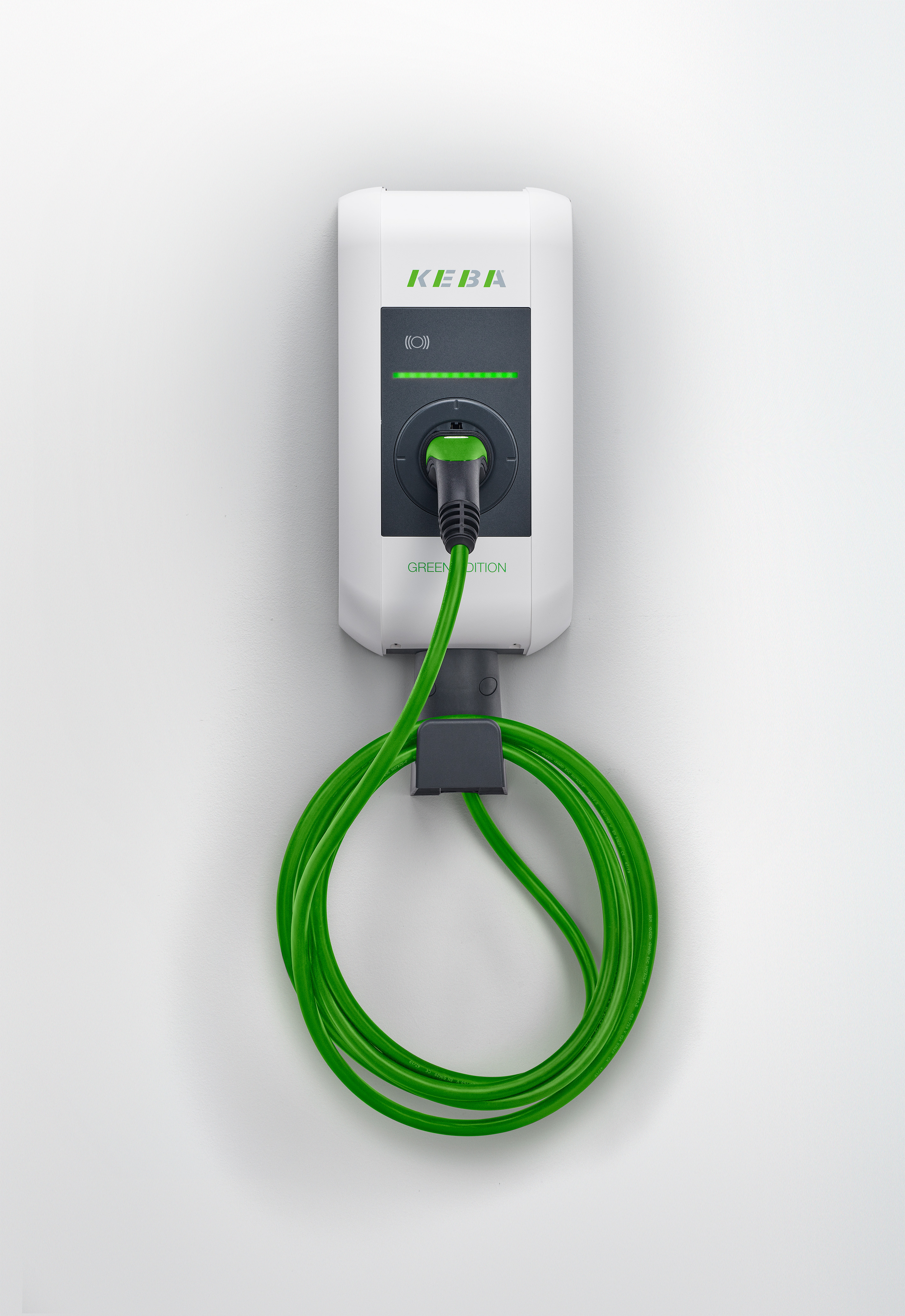

AC EV Charger RFID – Cable, 22kW/7.4kW

– Single/Three Phase, up-to 22kW AC, 32A
– Input Voltage 230 V (1 ph.) / 400 V (3 ph.) AC
– RFID Authentication Reader with Card
– Auto recovery for continuance availability, up to 5 attempts after the following failures
• Overvoltage or Undervoltage in the power grid
• DC leakage current from the vehicle is too high
• Unexpected signal from the vehicle
• Cable is not connected/locked properly
• Current monitoring triggers
– Automatic power reduction if overheating occurs “uninterrupted charging operation”
• Reduction of charging capacity if the ambient temperature is too high
• Reduction at dirty or damaged charging contacts through direct measurement of socket temperature
• Increase of charging capacity after the the system has cooled down
– Four segment multicolor LED HMI to show different operating statuses
– Built in Residual direct current detecting device RCD DD 6 mA
– Protection: IP54 – IK10
– Operating Temperature is -25 °C to +50 °C
